Silvaflame Milling Machine Table Guard EM Type

This enclosure type safety shield has two independent steel tubular frames and 5mm polycarbonate windows that are mounted on adjustable table rails on either side of the machine table by high tensile 'T' bolts which are supplied. Each guard hinges on a pivot bracket  and is fitted with electrical interlocks.

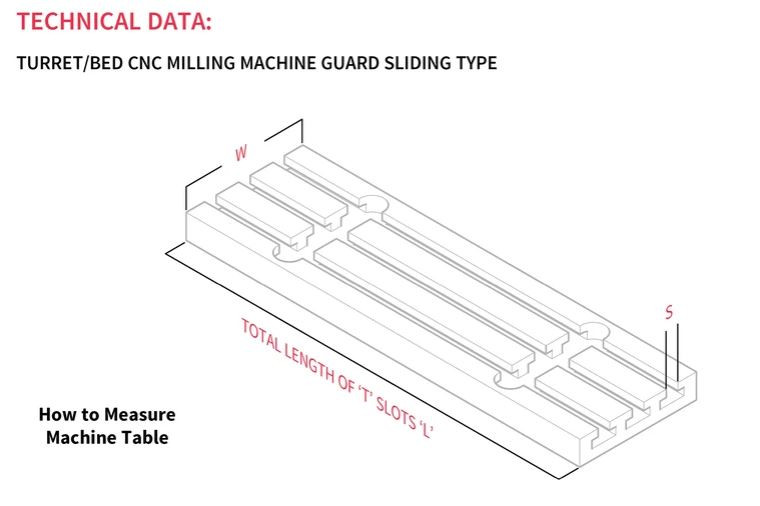

Item is custom built to machine machine table measurements provided when ordering.

An integral locking mechanism holds the guard in the closed operational mode, a quick release plunger pin allows each section to swing and hinge aside to give immediate and open access to the entire work area. All vision panels incorporate angled return leading edges that restrict flying swarf and coolant to the bed area of the machine.

Totally encloses front and side of machine table.  Slide and fold back front windows giving access to the work area.

Easily installed - adjustable parallel rails are T bolted to table slots allowing the guard to be positioned forward around vice or component.

• Includes interlock and positive manual latch
• Steel tubular frame construction with 5mm polycarbonate windows
• Optional rear guard helps contain flying swarf within the table area
• Optional infill swarf tray helps reduce the hazard of fallen swarf

24 to 40 STANDARD:
