MST-PTR05/180

Prismont Drill Press Telescopic Guard

$721.00

Protects the operator from direct frontal contact with rotating components of the spindle, of the tool and from projection of shavings and lubricant-coolant.

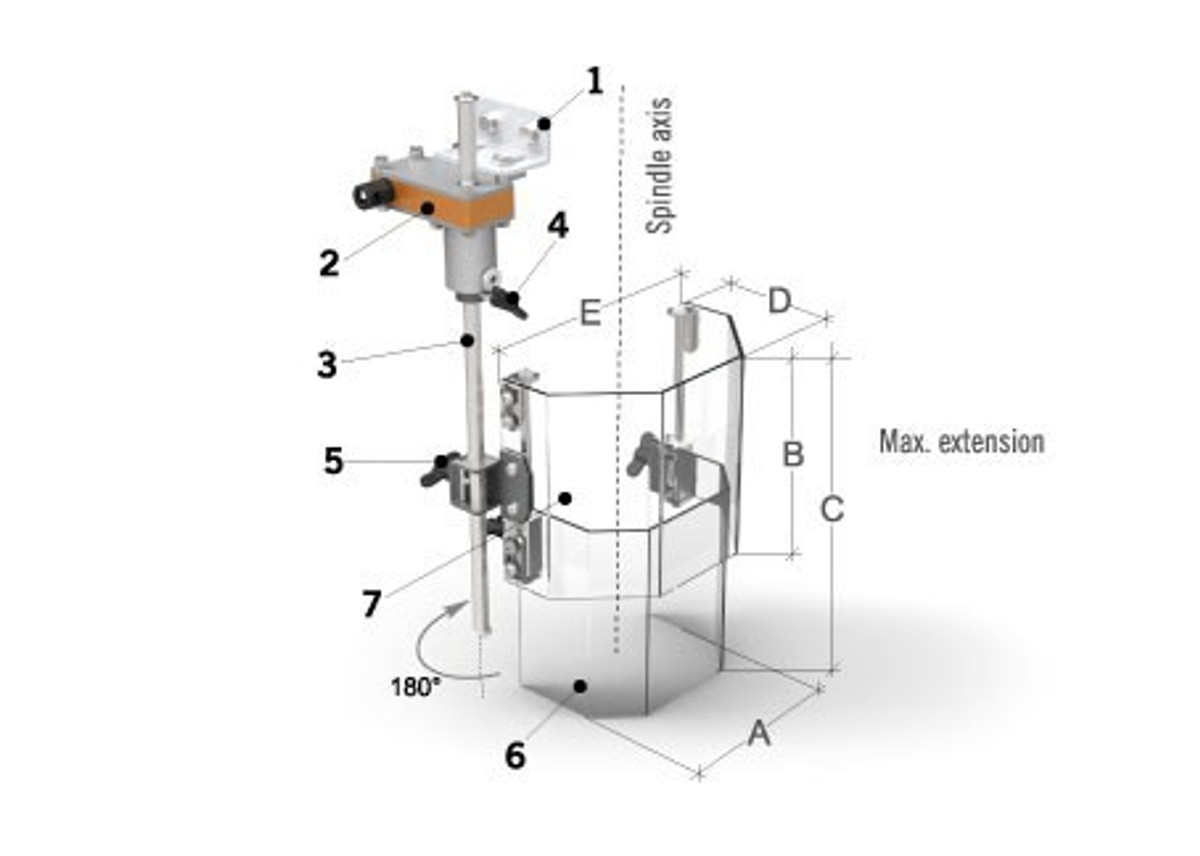

The main feature is the telescopic shield, vertically adjustable (refer to dimensions «B» and «C») and positionable along arm (3). The shield opens laterally with 180° rotary movement, allowing easy access for operations of tool change. The stirrup allows a solid anchorage at the drill structure.

Shield Dimensions
